Audio Bench – Traditional

£1,995.00£2,095.00 excl. vat

Solar Powered Audio Bench – Traditional style. Supplied with surface fitting bracket.

Description

Up to 6 Messages across 2 Buttons

The Audio Bench – Iroko Hardwood integrates our solar electronics with a commercial grade Iroko Hardwood bench, providing outdoor audio interpretation of up to 6 messages which can be accessed incrementally by 2 buttons (to discuss other button options please contact us). The great thing about the Audio Bench – Iroko Hardwood is how seamlessly the audio electronics are integrated, not detracting from the traditional aesthetic of the bench in any way.

Note: We also supply an Oak Audio Bench of a more modern and heavy duty design.

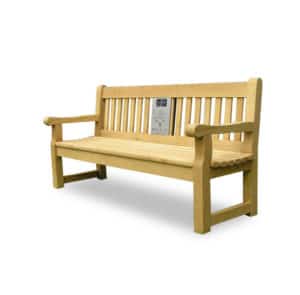

Solar Audio Bench in Traditional Style

Enhances Visitor’s Experience

The audio can be used to enhance your visitor’s experience by narration, interviews, oral histories, animal noises – in fact whatever audio you’d like to reproduce.


Access User Statistics

Through the use of a USB programming dongle you can update the content contained within your Audio Bench, you can also access usage figures to keep track of how many times the bench and each message has been activated. There’s also room on the front plate for laser engraved designs and text of your choice.

NOTE: Windows OS is required to program your Audio Bench using a PC or Laptop (XP – 10). MacOS is not supported due to hidden files generated by the OS.

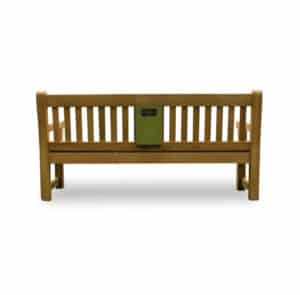

Back of traditional style audio bench

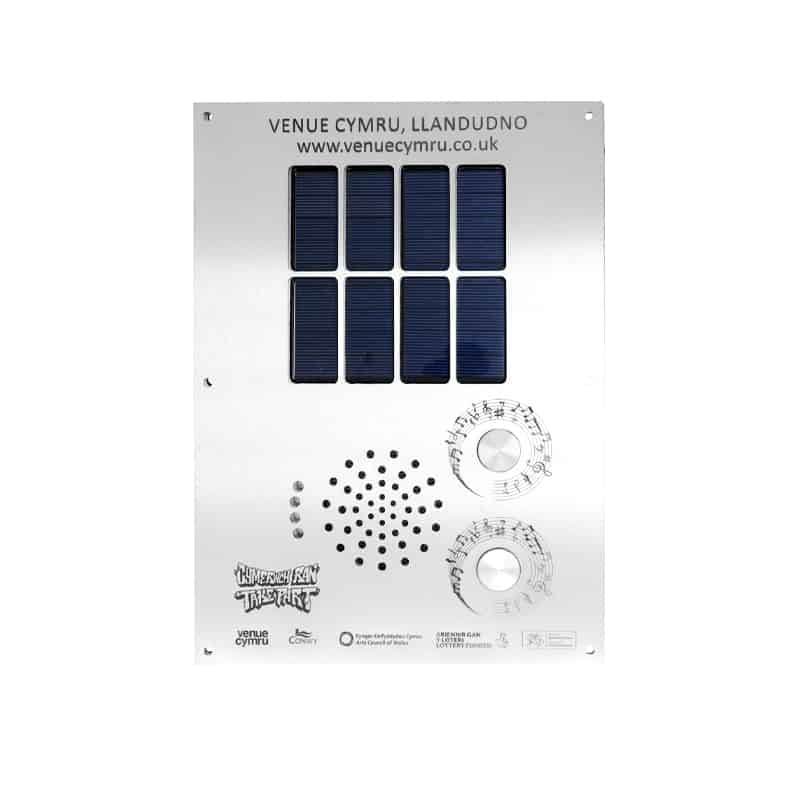

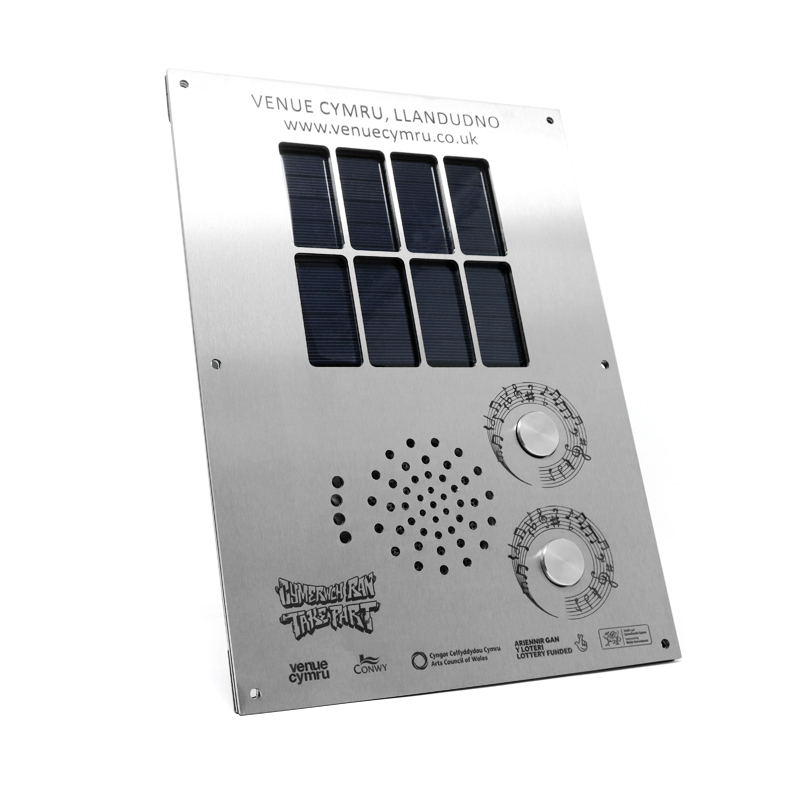

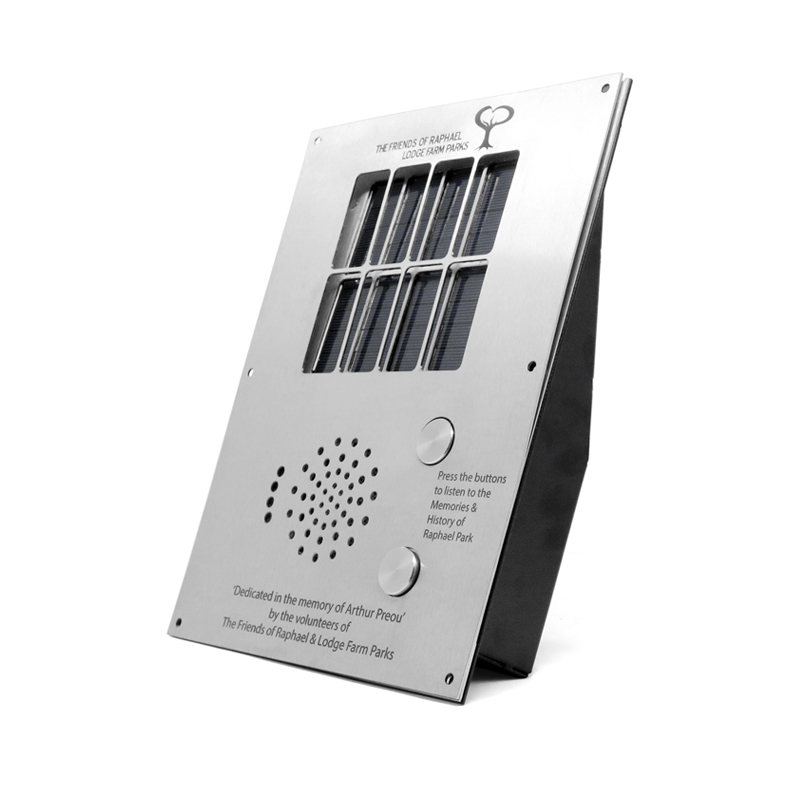

Solar Audio Bench Panel Front

Key Features

  • Up to 6 messages accessed incrementally via 1/2 buttons
  • Re-programmable via USB dongle (supplied)
  • No mains power required
  • High quality Iroko Hardwood bench
  • Environmentally friendly
  • Engraved sign graphics
  • Virtually maintenance free
  • Supplied with L Bracket for surface fitting
  • Can be installed and used both indoors and out (dependent upon access to appropriate levels of sunlight)

Outdoor Audio

Instructions can be engraved on the front of the bench to communicate how to use the audio equipment but it’s truly simplicity itself. Just press the touch sensitive buttons and increment through the various audio tracks.

Two people sitting on Echo Point Audio Bench (square)

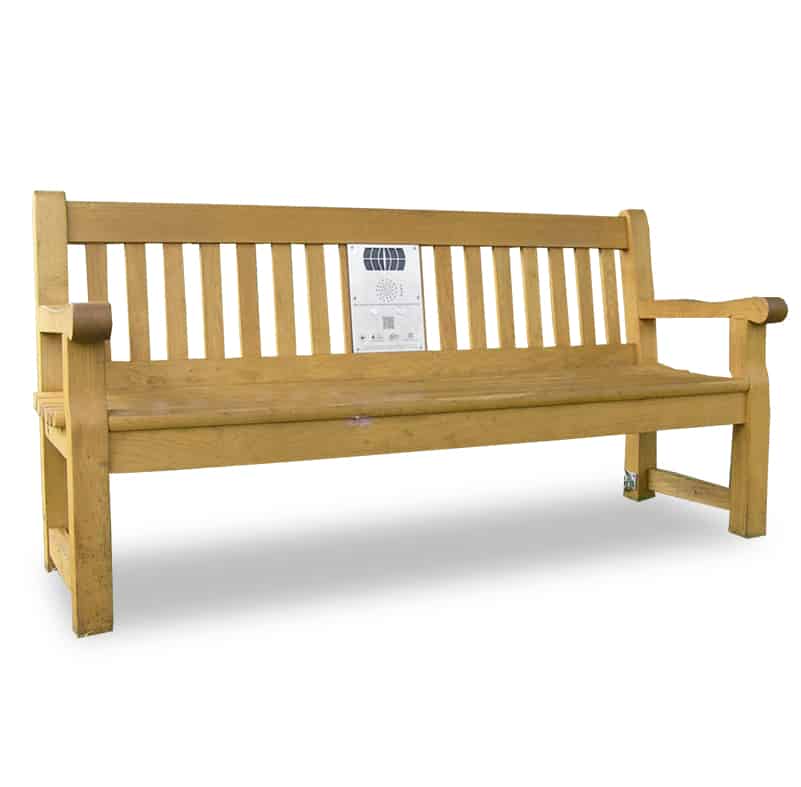

The Traditional Bench

The bench is commercially rated and ready for public use. 180cm (6ft) in size it can comfortably seat 4 people. It’s constructed from Iroko Hardwood using traditional joinery methods and supplied with metal anchors for installation purposes (to be cemented into the ground).

How to Proceed

Simply determine whether you will be providing the button panel artwork, or if you want us to create it for you (for a fee) and a member of our staff will contact you upon receipt of your order to discuss your requirements.

For bespoke options please contact us on 44 (0)1639 767007 or at sales@blackboxav.co.uk.

Additional information

Weight40 kg
Dimensions1800 × 550 × 900 mm
Bench Material

Iroko Hardwood

Seats

4 adults

Anchors For Installation

Included

Message Storage Medium

Flash Memory (on board)

Maximum Number Of Messages

6 (contact for bespoke options)

Maximum Number Of Buttons

2 sealed, weatherproof touch sensitive buttons (contact for bespoke options)

Button Config Options

Multi-Language – Button 1 English 1,2,3, Button 2 Welsh 4, 5, 6 Up / Down Button 1 up track, Button 2 down track

Updatable Content

Yes

Audio Output

450mW into 8ohm speaker

Audio Freq. range

75Hz-20kHz

Power

2 inbuilt Solar panels charging 6 x 1.2 V long life batteries at up to 100mA per hour

Power Consumption

Average of 50mA

Playtime

A full charge will give 3000 plays of a 30 second audio file /- 150 (25 hours)

Maintenance

Batteries likely require changing every 2/3 years Solar panels will need to be clean of any moss or debris to ensure that charge is being received

Maximum Total Message Length

>16 minutes @ 64kbs

Downloads

Manual(s)

Audio Bench Traditional Manual

0.3MB – October 2024 V2.4

Audio Bench Panel Template (Return as Vector)

0.3MB – June 2021
