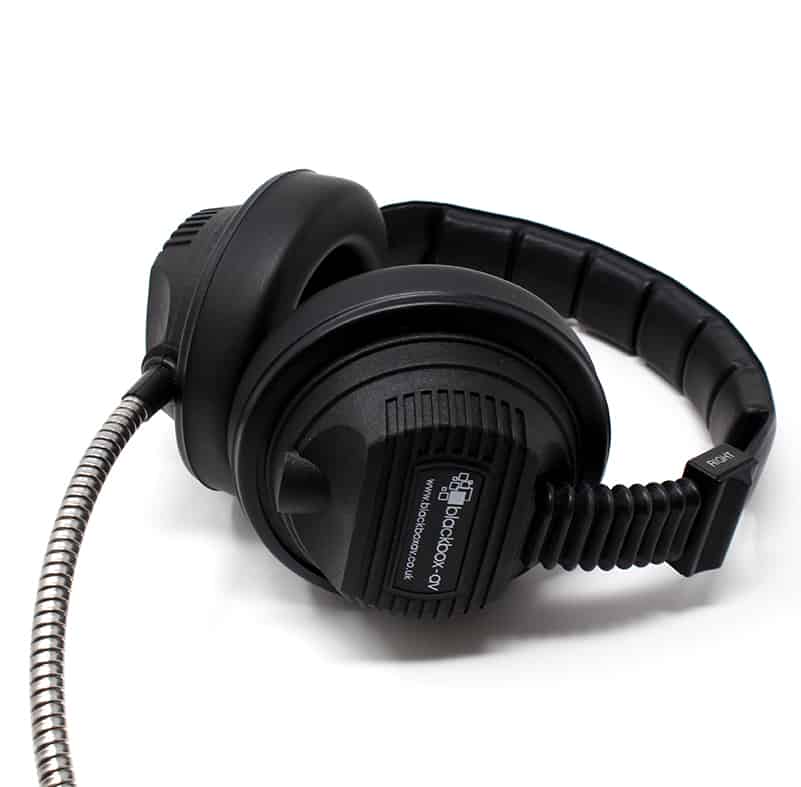

‘MKII’ Armoured Cable Headphones (ACC-100) – Standard / AutoPlay

£154.00£200.50 excl. vat

Double Cup/MKII Headphones with Standard or AutoPlay functionality – Modern Hanger included.

Have you seen our new Heavy Duty Handset?

Description

Reliable and Vandal Resistant

Our Double Cup/MKII Headphones are reliable, vandal resistant and suitable for any application within the public domain, thanks to the audio cable being protected inside a larger steel armoured conduit cable.

They offer increased durability and improved sound due to the inclusion of the unique 90° swivel knuckle, a more robust anchor point between cable and headphones, as well as boasting an increased impedance of 100 Ohms. They are supplied with a 3.5mm jack and a simple robust hanger of modern design for easy storage.

We also offer durable single cup headphones.


Standard or AutoPlay Version

There are two versions of the Double Cup/MKII Headphones, ‘Standard’ or ‘Autoplay’. Standard operates like any other pair of headphones – place on your ears and listen to the audio file that is playing.

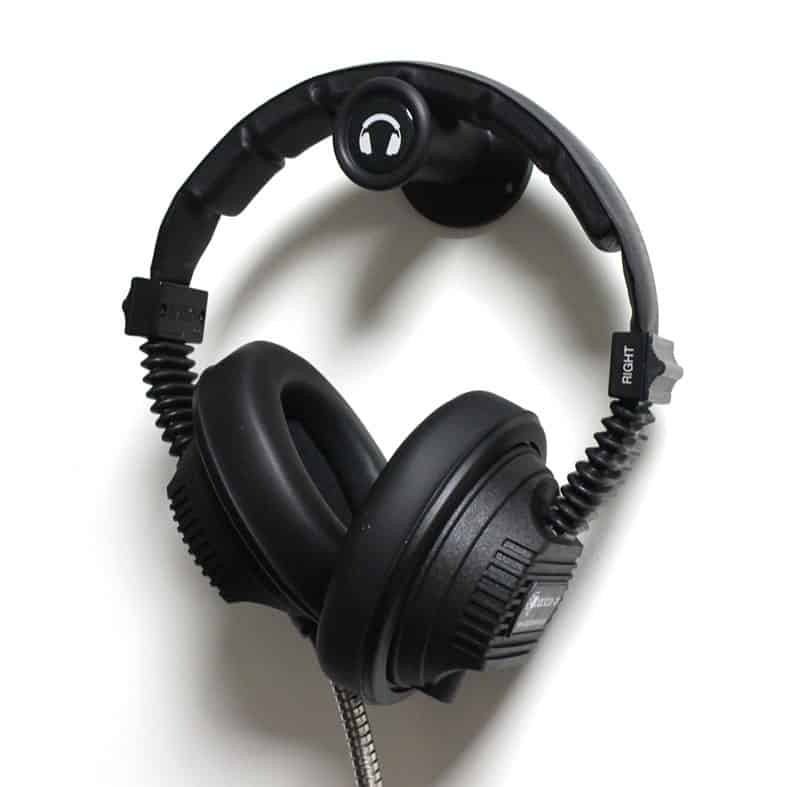

The AutoPlay version incorporates an Auto-Trigger function, this activates the audio content to play when the headphones are removed from it’s magnetic hanger. Requires compatible device, we recommend our SoundClip range


Key Features

  • Highly robust and vandal resistant
  • Modern hanger included
  • 90° swivel knuckle
  • Reliable performance
  • Versatile applications
  • Easy to fit on site
  • Ergonomic and comfortable design
  • Cost effective and offer value for money
  • Replaceable ear pads available

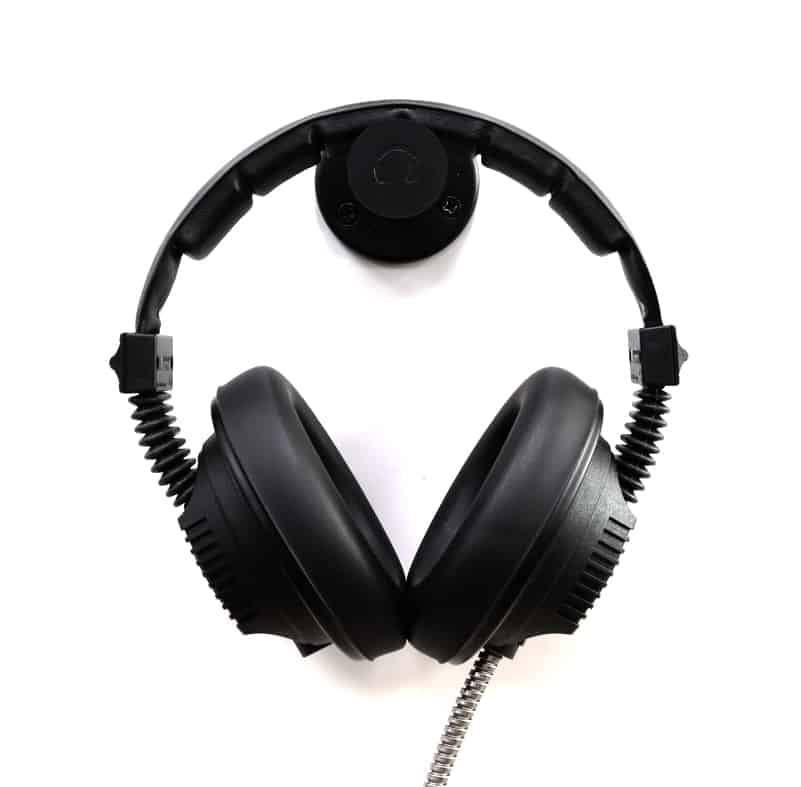

Unique Modern Hanger

The supplied hanger is beautifully simple in design. The AutoPlay function is enabled via the unique hanger – although primarily designed to work when combined with our range of SoundClip audio players, the Auto-Play function should be compatible with a range of other devices (please confirm with us before purchase).


Unique 90° Knuckle

Many companies use glands (or nothing at all) which allows the cable to pass straight through a material but does not allow the cable to hang naturally, putting strain onto the cable and the fitting.

The 90° knuckle protects the fitting point and also limits cable movement to 45° providing a sound anchor point and preventing the 50cm cable from being twisted around which can quickly cause damage to the inner cable, requiring a service call to repair.

Specifically engineered for public application, these headphones are considered the best and last longer in everyday use, having been in constant development since we first supplied them to ‘Virgin‘ and ‘Our Price‘ record stores almost 20 years ago.


90 Degree Armoured Cable Headphone Knuckle Mounting Plate Unique.2

Optional Mounting Plate

We also offer an optional Knuckle Mounting Plate for increased durability at the fitting point should it be required. This helps secure the cable in place and avoids wear and tear.


3.5mm Jack

Simply connect the headphones to your audio playback device using the 3.5mm jack. If you are in need of an audio playback device we recommend a SoundClip which contains an on-board amplifier and can output to 2 headphones


Easy Fitting

The unit is very easy to fit on site and is particularly well suited for applications in museums, attractions, retail and other high usage environments. Using the 90° swivel knuckle you fit the headphones through a panel, the optional knuckle plate allows you to strengthen this cable connection point and avoid fracturing.



Options

  • Standard / AutoPlay
  • With / Without Knuckle Mounting Plate

Additional information

Weight0.6 kg
Dimensions60 × 200 × 200 mm
Version

Standard Version, AutoPlay Version

Nominal Impedance

100Ω

Frequency Response

16 – 21.000 Hz

Sound Pressure Level

96dB (1mW / 1kHz)

Input Power (W)

Rated: 30Mw – Max: 50mW

Input Power (V)

Rated: 1.7V – Max: 2.25V

Switching Signal (AutoPlay)

Headphone on Hanger: Contact closed / Headphone off: Contact open

Armoured Cable Length

1200mm

3.5mm Cable Length

500 (+/- 10mm) from Knuckle

External Noise Isolation

app. 22 dBa

Driver Principle

Dynamic

Ear Par Material

Synthetic leather, circumaural ear pads

Acoustic Principle

Closed

Downloads

Manual(s)

MKII Headphone Manual

0.4MB – Sep 2024 V2.2

MKII Headphone Spec Sheet

0.5MB – Sep 2024


Downloads

Double Cup/MKII Headphones Line Drawing

0.06MB – Jan 2018

Knuckle Mounting Plate Line Drawing

0.03MB – Jan 2012

Modern Hanger Line Drawing

0.1MB – Feb 2023
