Outdoor Mediascreen

£1,600.00£8,743.00 excl. vat

The Outdoor Mediascreen is perfect for displaying simple media content in outdoor or wet environments. With a built-in Android player you simply upload your content via USB. Optional Speakers with 43-65″ versions. Remote CMS Software upgrade available contact us for more information.

A Touchscreen version is available here.

Description

Built-in Android Player – Plug ‘n’ Play

The Outdoor Mediascreen comes equipped with a built-in Android Media Player, allowing you to quickly and easily create a simple media playlist. Content is uploaded via USB and transferred to onboard memory.


Landscape or Portrait

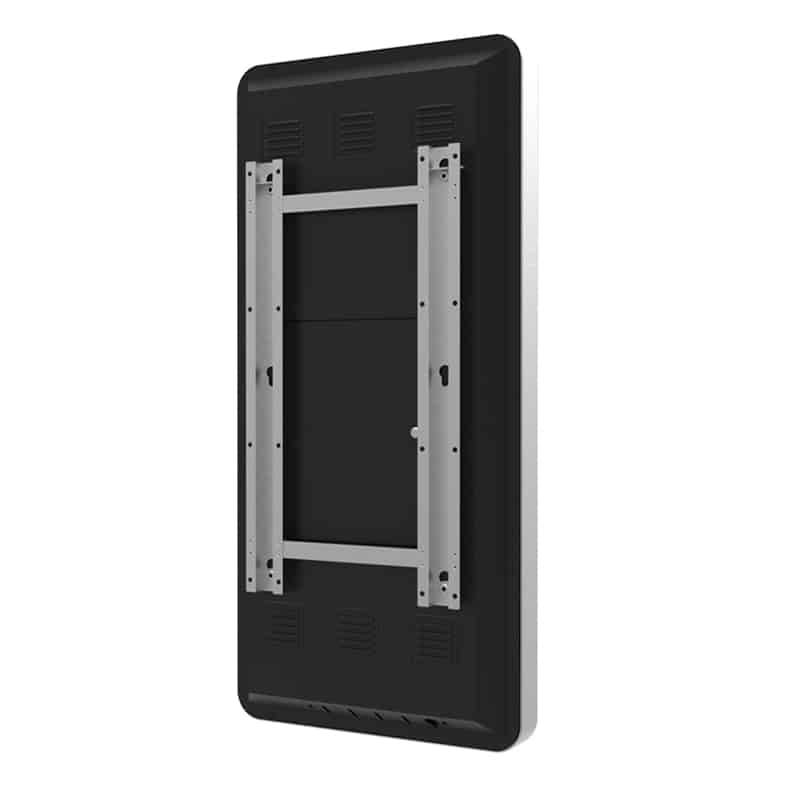

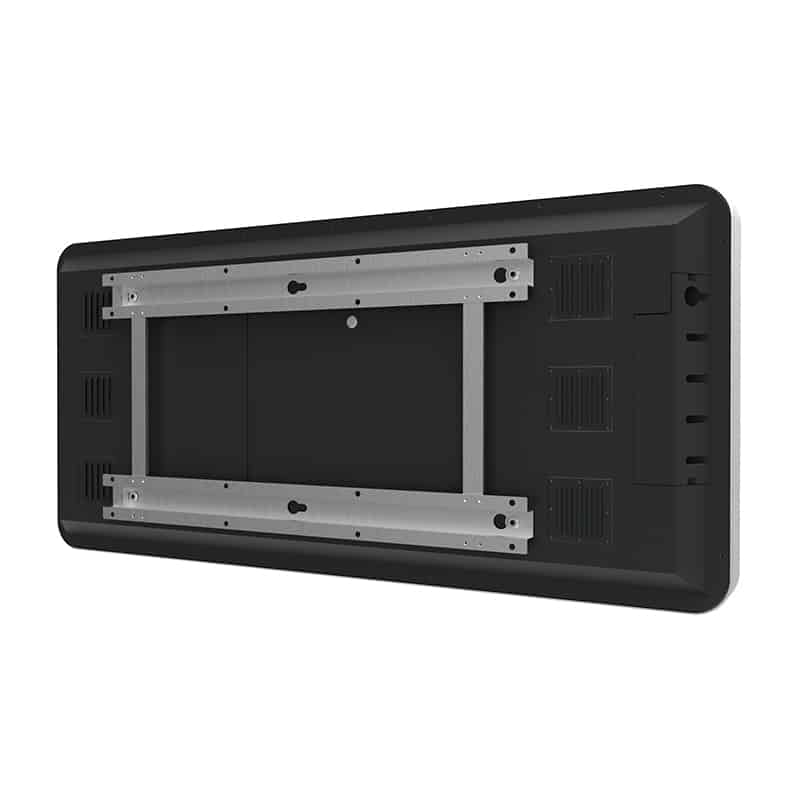

The Mediascreen can be mounted in either landscape or portrait orientation via the supplied mounting bracket.


Ultra High Brightness

Using Ultra High Brightness panels (2500cd/m²) more than 8 times brighter than a standard LCD panel and with anti-reflective glass, the unit is easily viewed in direct sunlight.


Weatherproof – IP65 Rating

With an IP65 rating, the Outdoor Mediascreen is built to withstand all wet weather and dusty conditions. A waterproof coating is placed on all internal circuit boards and AV connectors, ensuring no damage can be caused.​

Smart Temperature Control System

Using an advanced Air-Conditioning system, the unit manages internal temperatures to ensure a maximum lifespan, allowing it to operate in a wide array of climates.

Vandal Resistant

The outer casing is IK10 rated, made from mild steel and thermally toughened glass. Controls and openings are also locked and inaccessible to users.


Third Party Media Player

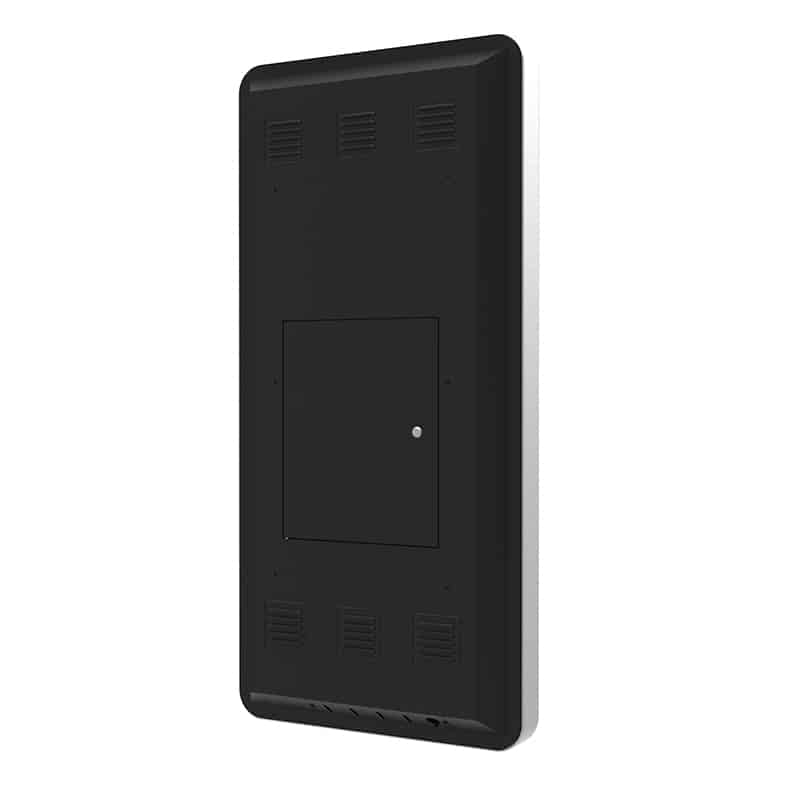

Use your own device and power the screen with any third party media player that can be stored inside the available rear lockable compartment. This can then be connected to the display via the HDMI & VGA.

Additional information

Unit Weight

22": 20.05Kg 32": 36.2Kg 43": 58.75Kg 49": 80Kg 55":85Kg 65": 95Kg

Unit Dimensions (LxWxH)

22": 120x397x736mm 32": 130x516x1041mm 43": 140x670x1410mm 49": 140x746x1500mm 55": 140x817x1638mm 65": 140x990x1910

Resolution

22-55": 1080×1920
65": 3840×2160

Brightness

22": 2000cd/m²
32-65": 2500cd/m²

Viewing Angle

178°

Contrast Ratio

8000:1

AV Signal Inputs

HDMI, VGA

Input Voltage

AC110~240V (50Hz~60Hz)

Operating Temperature

-20°C to 50°

Supported Media Formats

Video: MPG, AVI, MP4, RM, RMVB, TS
Audio: MP3, WMA
Image: JPG, GIF, BMP, PNG

Storage via

USB – 2 x USB 2.0 Ports

Internal Memory

6GB

CPU

Quad-Core Cortex-A9 @1.6GHz

GPU

Mali-400 MP4 @400MHz

RAM

1GB DDR3

ROM

8GB NAND

LAN

10/100M Ethernet (with the Network Upgrade)

WiFi

802.11b/g/n (with the Network Upgrade)

OS

Android 4.2.2

Speakers

2 x 5W (optional)

Downloads

Manual(s)

Outdoor Mediascreen Spec Sheet

0.2MB – July 2020


Downloads

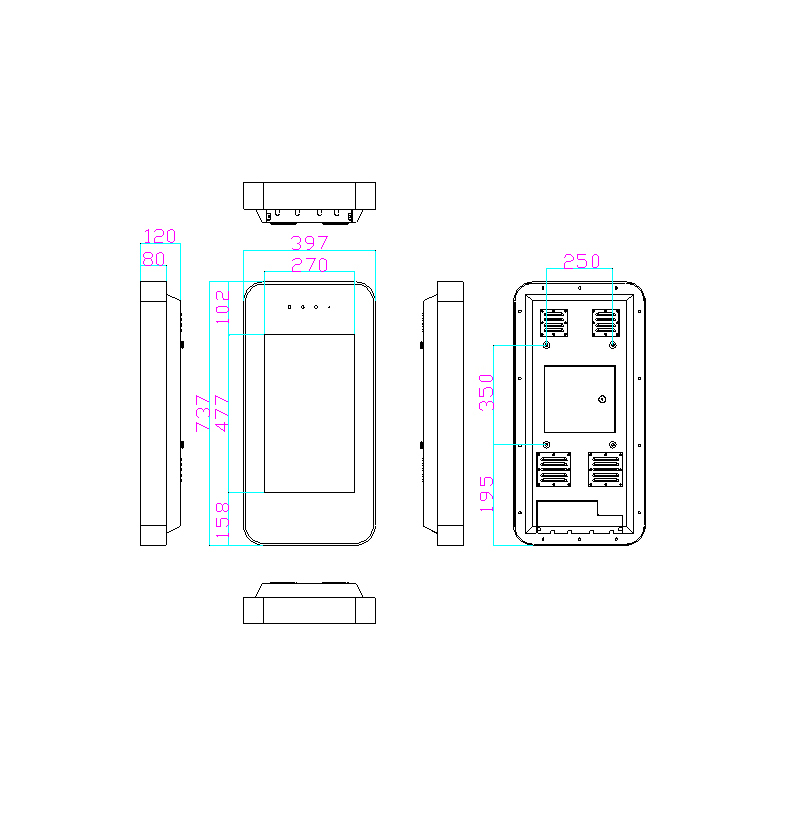

22″ Outdoor Mediascreen Technical Drawings

0.1MB – July 2020

32″ Outdoor Mediascreen Technical Drawings

0.1MB – July 2020

43″ Outdoor Mediascreen Technical Drawings

0.1MB – July 2020

49″ Outdoor Mediascreen Technical Drawings

0.1MB – July 2020

55″ Outdoor Mediascreen Technical Drawings

0.1MB – July 2020

65″ Outdoor Mediascreen Technical Drawings

0.3MB – July 2020
