Piezo Button

£24.00 excl. vat

19mm Piezo Buttons, for outdoor and indoor use.

Description

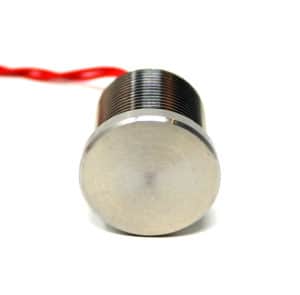

Piezo Button Front View with Nut

Doesn’t Rust

The important feature of the Piezo Button is that it’s a one piece construction with no moving parts. It is therefore weatherproof and the stainless steel construction means it won’t rust.
This is our standard outdoor button and used on all our outdoor interpretation products. This is still a ‘push’ button and relies upon a small amount of pressure to be applied to the face of the button.



Indoor and Outdoor Use

Piezo is the must have button for outdoor use but you can also use it inside! Available in brushed stainless steel or black semi gloss finish. The 19mm Piezo Button is supplied with Approximately 500mm of cabling.

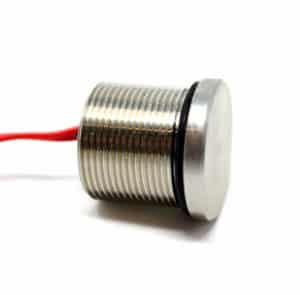

Piezo Button Side View Silver with Nut

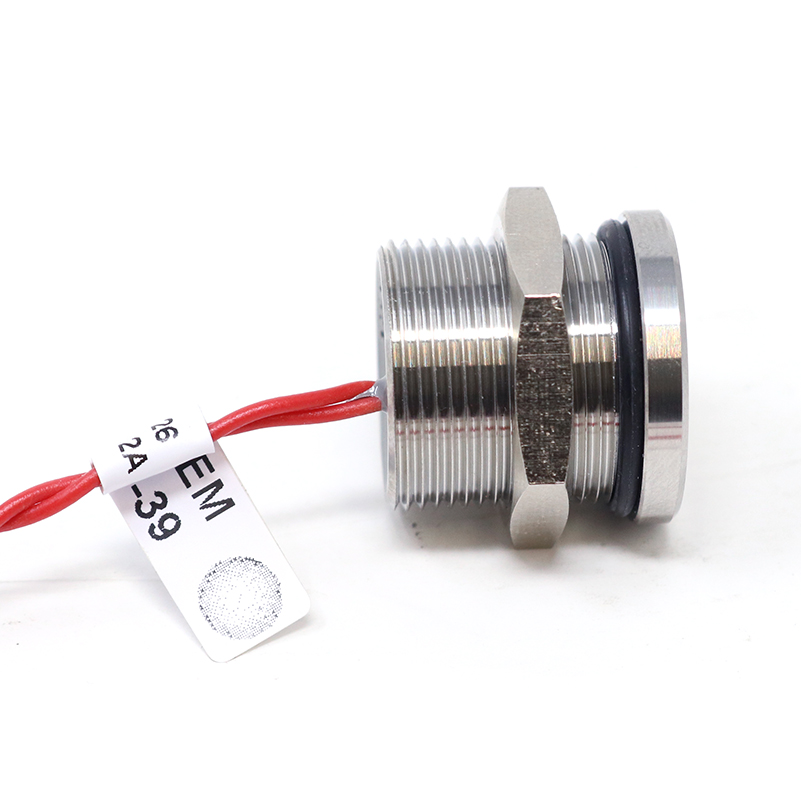

Piezo Button Side with Nut

Fitting Options

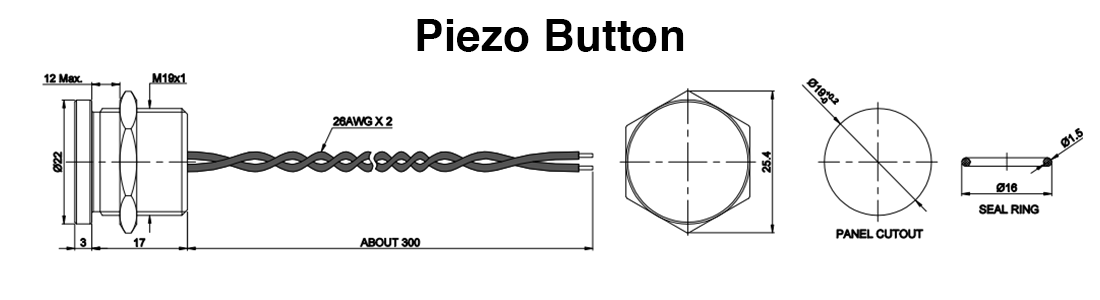

You will need to have a 20mm hole within your wood / metalwork to accept the button. These buttons are compatible with our push button operated outdoor products.

Additional information

Weight0.1 kg
Dimensions26 × 22 × 22 mm
Mechanical Specifications

'-

Water Resistant

Yes

Connection

Wireleads PVC wires 30cm 24AWG

Materials

Anodized Aluminium & Stainless Steel

Minimum Actuation Force

3 – 6N (Typical)

Mechanism

100% Solid State; no moving parts

Operational Life

20mm cycle, -60C to 85C (Typical)

Functional Operation Specifications

'-

Action

Momentary Pulsed, Normally Open

Impact

1kg Shock Test

Electrical Specifications:

'-

Voltage

2 wireleads 3~12VDC ± 5%

LED's Voltage

12V DC

Standard Current

100mA

Contact Resistance

None

Contact Bounce

None

EMI/RFI

No Effect

Polarised

Black GND Red V
