Solar Audio Post – Wooden

£1,020.00£1,180.00 excl. vat

The Solar Audio Post is an external in ground audio point activated by buttons and powered completely by Solar energy. Includes a USB Programming Dongle for easy upload of content.

SKU: N/A Categories: , ,

Description

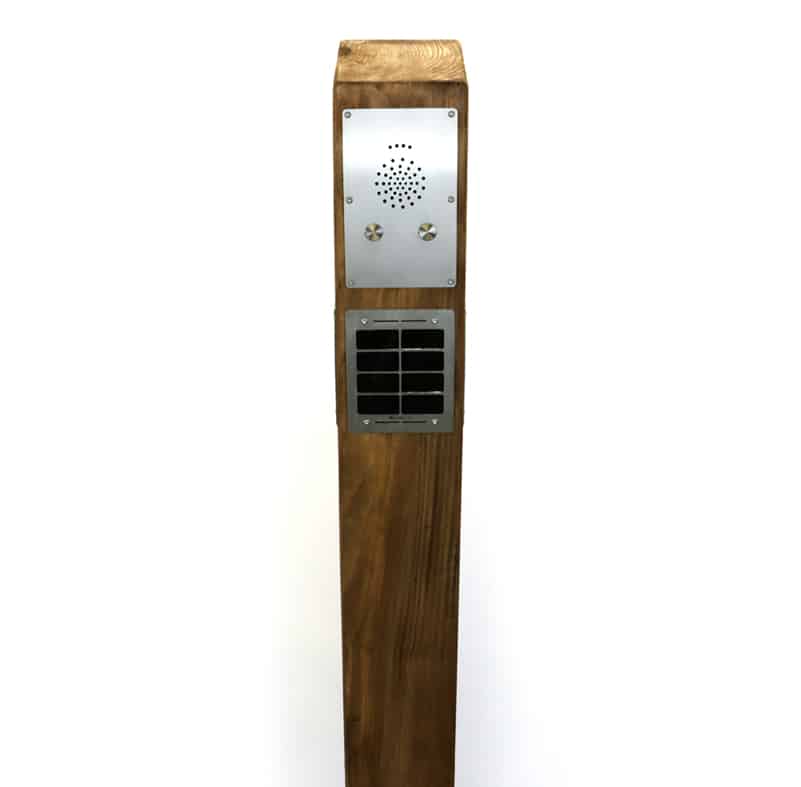

Solar Audio Post – Wooden

Activated by two buttons the solar powered Audio Post is a completely self-powered outdoor audio point, capable of playing up to 6 audio messages across 2 buttons (programmable via the supplied USB Programming Dongle).


Wooden Structure

The Solar Audio Post – Wooden is constructed from tanalised red wood timber, built to last in almost any environment. As this is a natural product, the timber will move over time as it dries out and contracts/expands in different weather conditions which can cause cracks within the wood. This is nothing to worry about as the timber is structurally sound and is purely the drying process. This is the same process you may have seen within traditional timber framed houses.


Playback Statistics

Gain an insight into unique visitor statistics with the in-built Playback Statistics setting. The Solar Post allows access to to three different stats:

  • Total messages played for a period (You can reset)
  • Total messages played for each track (You can reset)
  • Total messages played




Powered by The Sun

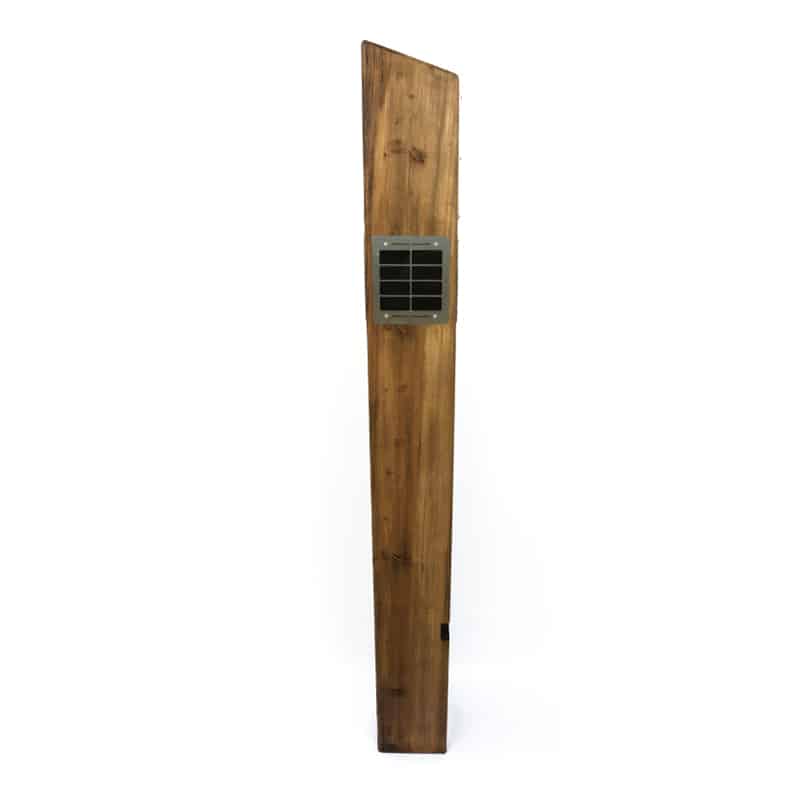

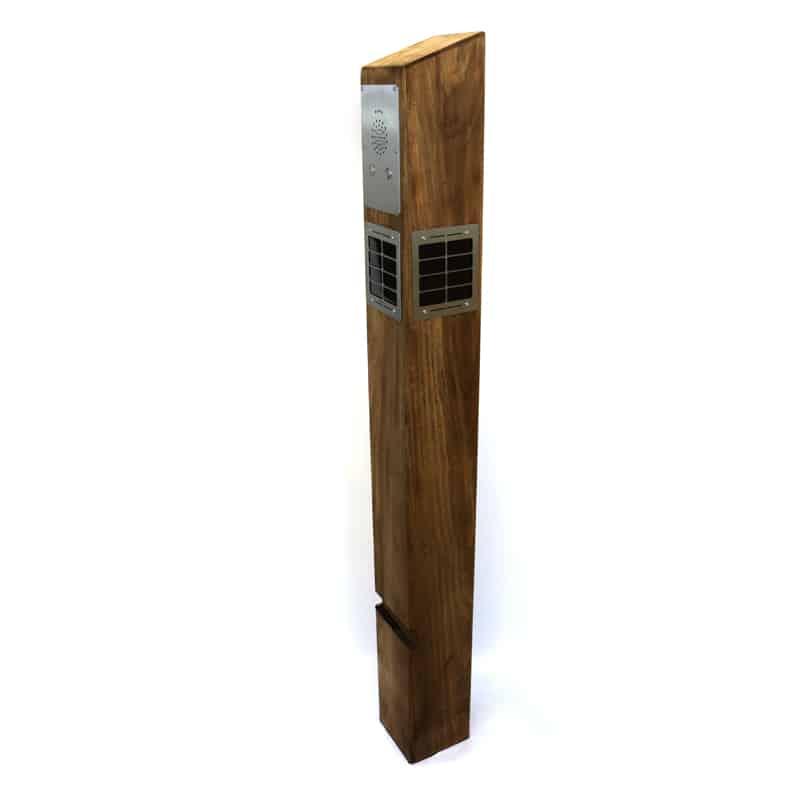

Built into each side of the wooden Solar Post are solar panels, these 4 panels ensure optimal exposure to sunlight throughout the day.

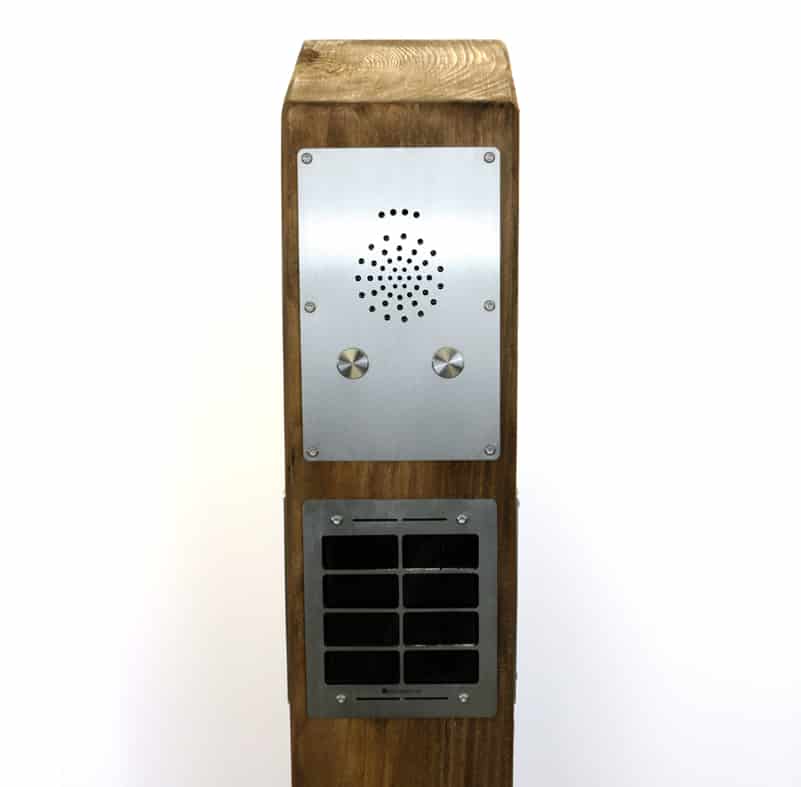

Front Plate Customisation

For an additional fee we provide laser etching to the front plate. This can be used to provide a list of content on each button, instructions or even logos.



Note: Any content used within the customisation of laser etched panels must be provided as vectors. Please supply these as .ai or compatible PDF files, not jpg/png. Any text should be converted as outlines.

Solar Post Custom Top Plate

Top Plate Customisation

There’s also the option for a customised top plate. This can be laser etched metal as the front plate, or for a full colour graphic in reverse printed Polycarbonate.


Easily Programmable

Quickly load .MP3 content onto the Solar Audio Post using the supplied USB Programming Dongle.

NOTE: Windows OS is required to program your Solar Post using a PC or Laptop (XP – 10). MacOS is not supported due to hidden files generated by the OS.

Additional information

Weight25 kg
Dimensions165 × 165 × 1583 mm
Power

4 built-in Solar Panels charging long life batteries at up to 200mA per hour (+/- 10%)

Material

Tanalised Red Wood Timber

Wood Finish

Rustic Brown Wood Protector

Message Storage

16MB Flash Memory (on board)

Maximum No. of Messages

6

Message Encoding Format

.MP3

Maximum Total Message Length

16 minutes @ 128kbps

Post Performance

4 hours charge = 12 hours playback
This test uses spoken word audio at default volume.
The weather condition are on an overcast afternoon.

Programming Transfer Rate

Approx. 20 Seconds per MB of messages

Audio Output

1W into 8Ω Speaker

Frequency Range

75Hz – 20KHz

Number of Buttons

1, 2

Downloads

Manual(s)

Solar Audio Post Manual

0.5MB – Oct 2024 V2.4

Solar Audio Post – Wooden Spec Sheet

1.1MB – June 2020


Downloads

Solar Audio Post Artwork Template

0.1MB – June 2020
