SoundClip-12, 12 Button, Looping or PIR

£199.00 excl. vat

SoundClip-12, the 12 button solid-state stereo audio playback device.

If you need an extension cable for this device purchase one here.

Description

Solid State Audio

The SoundClip-12 is from our range of compact, stand-alone, high quality stereo audio players. It can be used to present audio through headphones via two 3.5mm audio jacks or 2 speakers via the screw terminals.

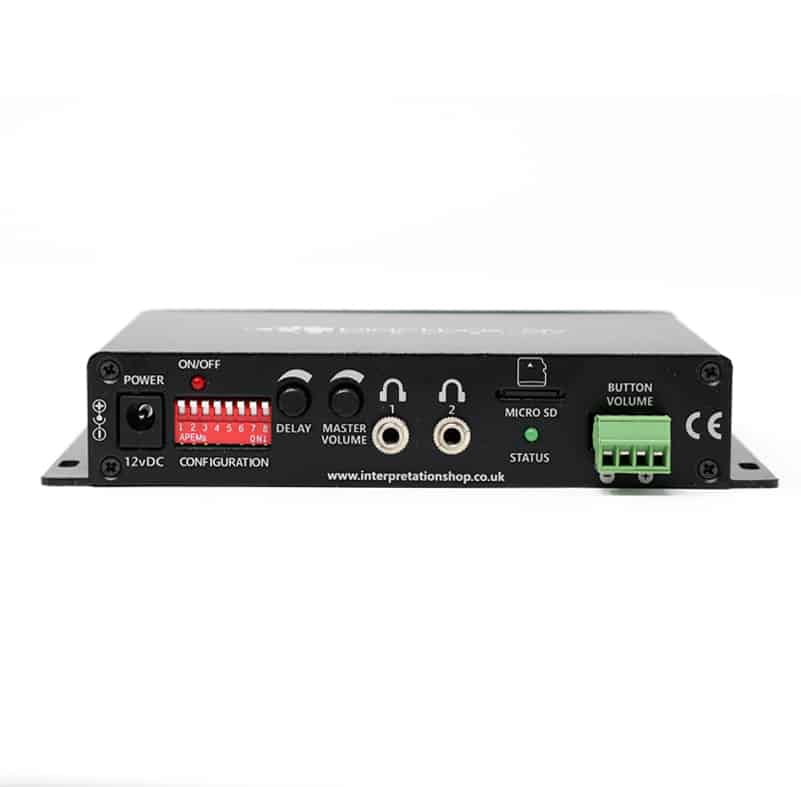

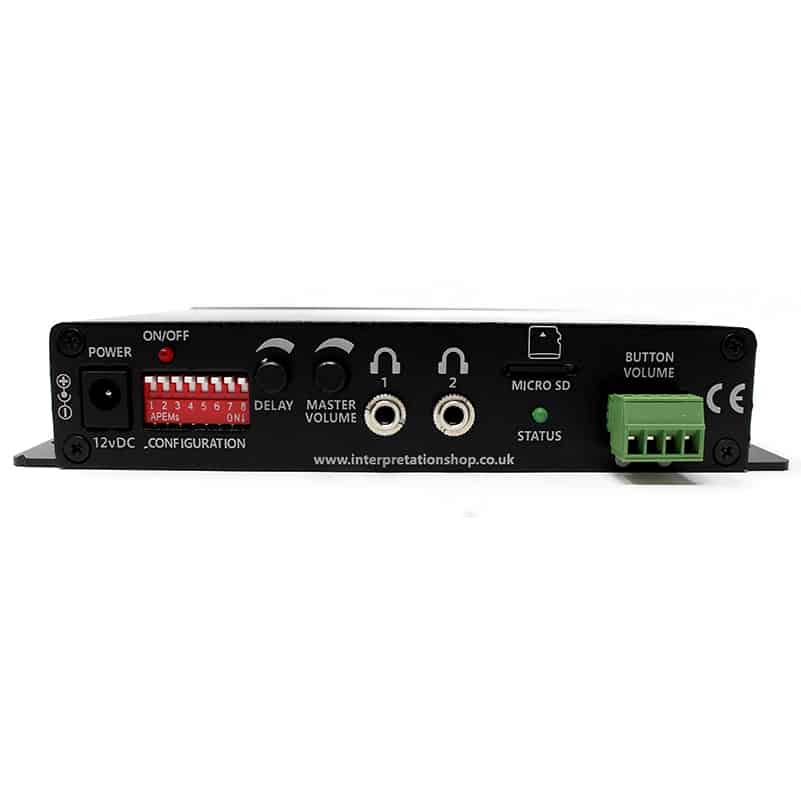

SoundClip V2 and 12 Outputs

Play Modes

.mp3 files are stored on a USB Stick or SD card (included) which is then inserted into the SC-12.

The SC-12 can be programmed to play up to 99 files in a number of ways via a Mode.txt file;

  • 1 file activated by each button (interruptible / non-interruptible)
  • Autoplay on headphone pickup (with our autoplay range)
  • PIR activation
  • Looping / holding track with additional button activation
  • Next / Previous track mode
  • 1 Button triggers a folder of tracks, same button to skip through

The SC-12 can be activated via buttons or PIR (not included) and can be set to interruptible or non-interruptible mode (once a message begins playing it can or cannot be interrupted via another activation).

NOTE: Windows OS is required to program your SC-12 using a PC or Laptop (XP – 10). MacOS is not supported due to hidden files generated by the OS.


Output Options

  • Up to two handsets / headsets
  • Up to two speakers
  • Lighting – lights will activate when content plays, and deactivate when content stops

Note: Only 1 Autoplay device can be paired with the SC-12

SoundClip 12 Inputs

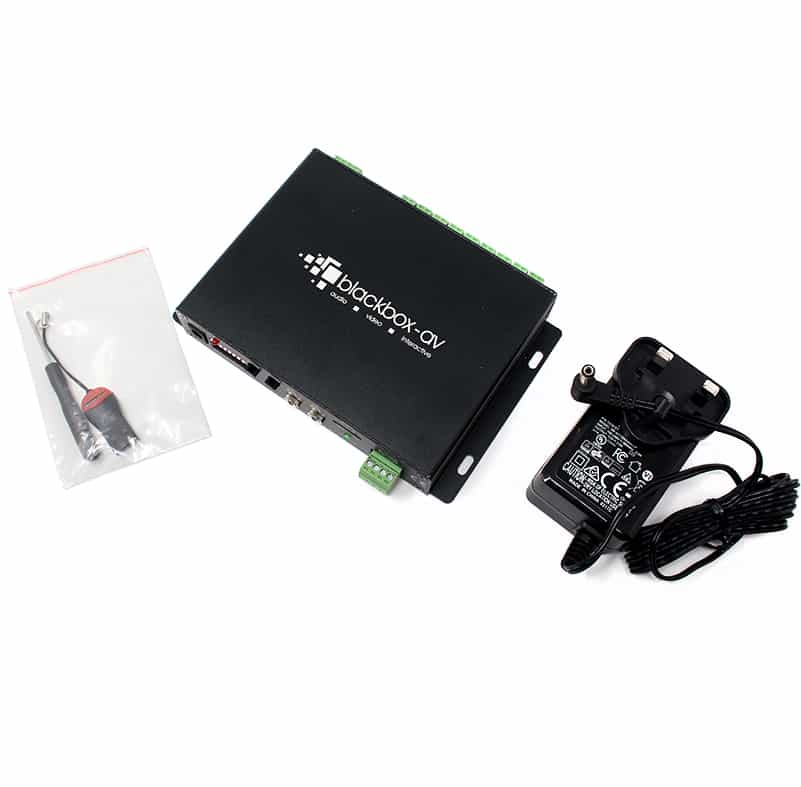

SoundClip 12 Components

Fitting Options

The device is incredibly easy to install due to its compact size and low weight. The efficient nature of the SC-12’s design and its two fixing wings means it can be installed securely into any suitable space.


Key Features

  • Supports 12 button inputs
  • Inbuilt 10w dual channel Amp
  • Dedicated button volume inputs
  • Easy to programme via SD card or USB Stick
  • Simple lighting controller (on with content, off when silent)
  • PIR compatible
  • Piezo button compatible
  • Looping / Holding track mode
  • Compatible with our AutoPlay handsets
SoundClip 12 Bird's Eye View

Additional information

Weight0.4 kg
Dimensions130 × 155 × 28 mm
Message storage medium

USB Stick / SD Card

Maximum number of audio Files

The SC-12 can play a maximum of 99 files

Message encoding format

.mp3

Number of Buttons/Trigger Inputs

12

Number of Lighting Outputs

1 via the 'GPIO / 12V Out' terminal

Lighting Power Output

1.2W @ 12V

Speaker audio output

10W per channel into 8Ω Speakers

Headphone audio output

2 x 3.5mm audio jack (headphones / handsets etc.)

Speaker connector

2 x screw terminals

12v Out

Power accessories such as low power LED’s or PIR Sensors

Power Consumption

Standby – 0.75W, Playback – 0.9W

Power Supply

External 5.5 x 2.1 DC12V 2A Power Connector

Downloads

Manual(s)

SoundClip-12 Manual

0.2MB – February 2024

SoundClip-12 Spec Sheet

0.3MB – October 2024


Downloads

Button Templates

1.3MB – March 2023


Previous Models (pre2023)

SC-8 User Manual

1.2MB – June 2021 V1.1

SC-8 Spec Sheet

0.5MB – Jan 2019

.

SC-8L Manual

1.4MB – Oct 2021 V1.1

SC-8L Spec Sheet

0.4MB – May 2019

.

SoundClip-16 Manual

1.2MB – June 2021 V1.1

SoundClip-16 Spec Sheet

0.3MB – June 2020
