Description
Solid State Audio
The SoundClip-V2 is the first in our range of compact, stand-alone, high quality stereo audio players. It can be used to present audio through headphones via two 3.5mm audio jacks or 2 speakers via the screw terminals.
Play Modes
.mp3 files are stored on an SD card or USB Stick (included) which is then inserted into the SC-V2.
The SC-V2 can be programmed to play up to 99 files in a number of ways via a Mode.txt file:
- 1 file activated by each button (interruptible / non-interruptible)
- Autoplay on headphone pickup (with our autoplay range)
- PIR activation
- Looping / holding track with additional button activation
- Next / Previous track mode
- 1 Button triggers a folder of tracks, same button to skip through
The SC-V2 can be activated via buttons or PIR (not included) and can be set to interruptible or non-interruptible mode (once a message begins playing it can or cannot be interrupted via another activation).
NOTE: Windows OS is required to program your SC-V2 using a PC or Laptop (XP – 10). MacOS is not supported due to hidden files generated by the OS.
Output Options
- Up to two handsets / headsets
- Up to two speakers
- Lighting – lights will activate when content plays, and deactivate when content stops
Note: Only 1 Autoplay device can be paired with the SC-V2
Easy Fitting
The device is incredibly easy to install due to its compact size and low weight. The efficient nature of the SC-V2’s design and its two fixing wings means it can be installed securely into any suitable space.
Key Features
- Supports 2 button inputs
- Inbuilt 10w dual channel Amp
- Dedicated button volume inputs
- Easy to programme via SD card or USB Stick
- Simple lighting controller (on with content, off when silent)
- PIR compatible
- Piezo button compatible
- Looping / Holding track mode
- Compatible with our AutoPlay handsets
SC-V2
SC-V2
- .mp3
- Up to 99 files
- 1 message per button
- Next track mode
- Holding / Looping Track
- Autoplay Headphone Support
- 2 x Button Inputs
- Stereo Speaker Terminals
- 2 x 3.5mm Jacks
- 1 x Lighting Output
- Mains Powered
- PIR Compatible
- Dedicated Volume Inputs

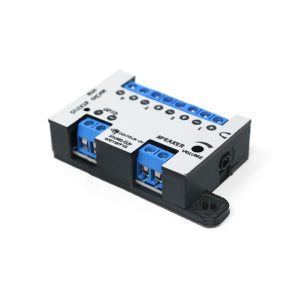

Battery Audio Player
Battery Audio Player
- .mp3
- Up to 4 files
- Looping / 1 message per button
- 4x Button Inputs
- 1x (Mono) Speaker Terminal
- 1x (Stereo) 3.5mm Jack
- Battery Powered
- Swappable Batteries
- PIR Compatible
- No user volume control
SC-12
SC-12
- .mp3
- Up to 99 files
- 1 message per button
- Next / Previous track mode
- Holding / Looping Track
- Autoplay Headphone Support
- 12 x Button Inputs
- Stereo Speaker Terminals
- 2 x 3.5mm Jacks
- 1 x Lighting Output
- Mains Powered
- PIR Compatible
- Dedicated Volume Inputs
