Telephone Handset

£120.00£142.49 excl. vat

The Telephone Handset offers a retro style audio solution for use in busy public environments. With standard or AutoPlay options as well as a built in microphone and rugged armoured cable, it’s ideal for use in unique builds.

Description

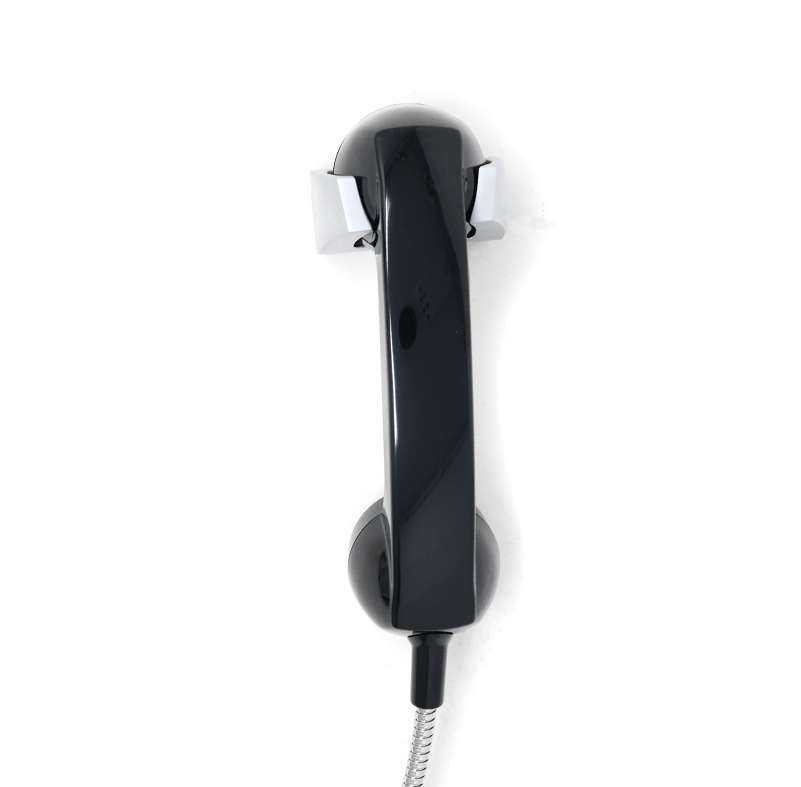

Handset with Hanger

The Telephone Handset houses both a high quality speaker and microphone within a durable polycarbonate case. This coupled with the robust alloy cradle and armoured cable makes it ideal for public use.

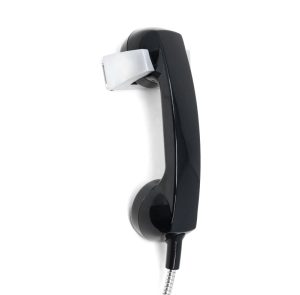

Telephone Handset on Hanger side

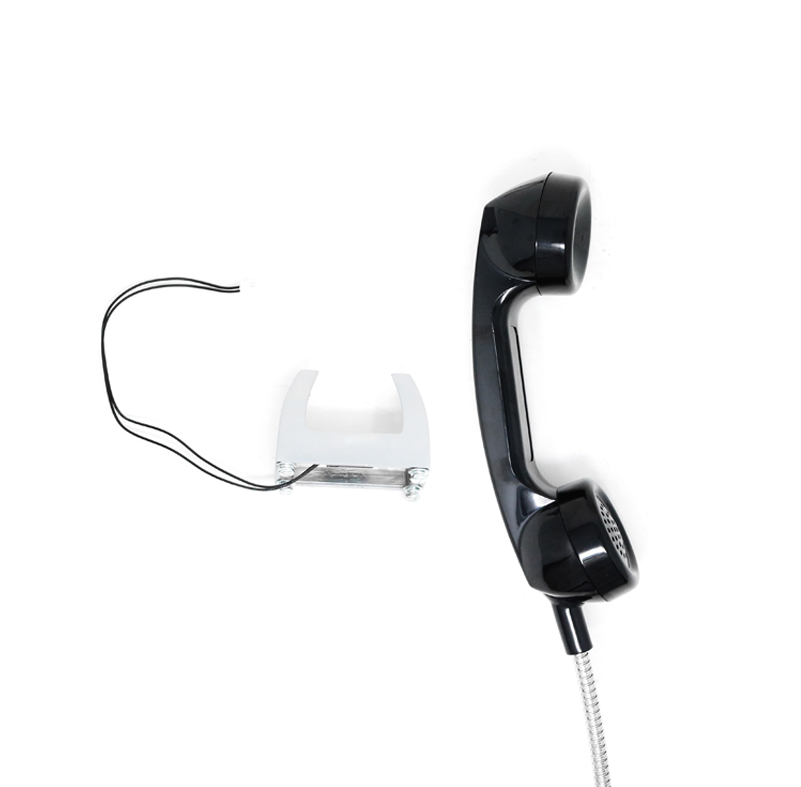

Telephone Handset with Hanger Angled

Standard or AutoPlay Version

We offer two versions of the Telephone Handset, ‘Standard’ or ‘AutoPlay’. When used with an audio player, Standard operates like any other handset – place it to your ear and listen to audio.

The AutoPlay version incorporates an Auto-Trigger function, this can activate audio content when the handset is removed from it’s hanger. Requires compatible device such as our SoundClip Players.


Hanger with Reed Sensor

The supplied durable hanger has a magnetic reed sensor built in for AutoPlay functionality and can be easily installed to any flat surface, making it ideal for bespoke constructions.

Telephone Handset Hanger

Telephone Handset Armoured Cable

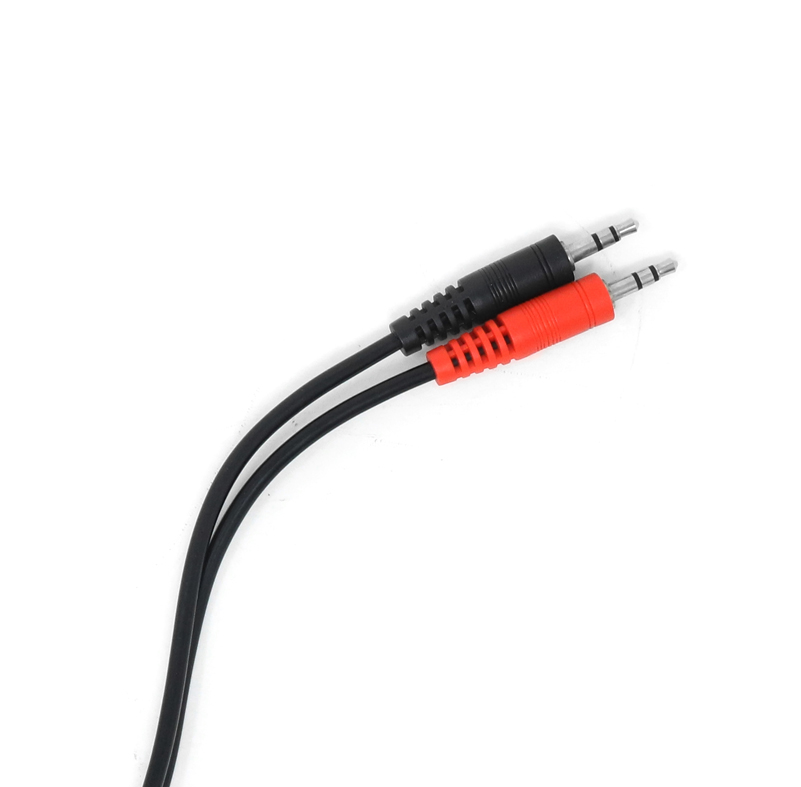

Armoured Cable – 3.5mm Jack

An 0.81m long, stainless steel armoured conduit protects the internal audio cables. Two 3.5mm audio jacks allow for simple connection to your audio source and microphone input while a robust strain relief connecting the cable to the handset offers further protection against cable fracture giving your handset the maximum durability.


Additional information

Weight0.5 kg
Dimensions210 × 67.7 × 60 mm
Colour

Black

DC Resistance

130±10 ohm

Impendance

150±20 ohm at 1 KHz

Frequency Response Range

300 Hz-3400 Hz

Sensitivity

95±3 dB at 60mv

Ambient Noise

≤60dB

SLR

5~15dB

RLR

~7~2Db

STMR

≥7dB

Operating Temperature

-30°C to +50°C

Relative Humidity

≤95%

Atmospheric Pressure

80Kpa-110Kpa

Armoured Cable Length

812.8mm

Connector

3.5mm Two-Audio Jack

Input Power (W)

Rated: 30Mw – Max: 50mW

Included

1 x Telephone Receiver, 1 x Hanger, 2 x M3 Screws, 2 x Ø3 Screws, 4 x M5 Screws

Downloads

Manual(s)

Telephone Handset Spec Sheet

0.4MB – April 2024
